How to choose a suitable weaving machine for you.

Lanying specialized in manufacuring weaving machines for different metal wire weaving such as stainless steel wire,

nickel wire, aluminium wire, iron, platinumn, siver, etc..

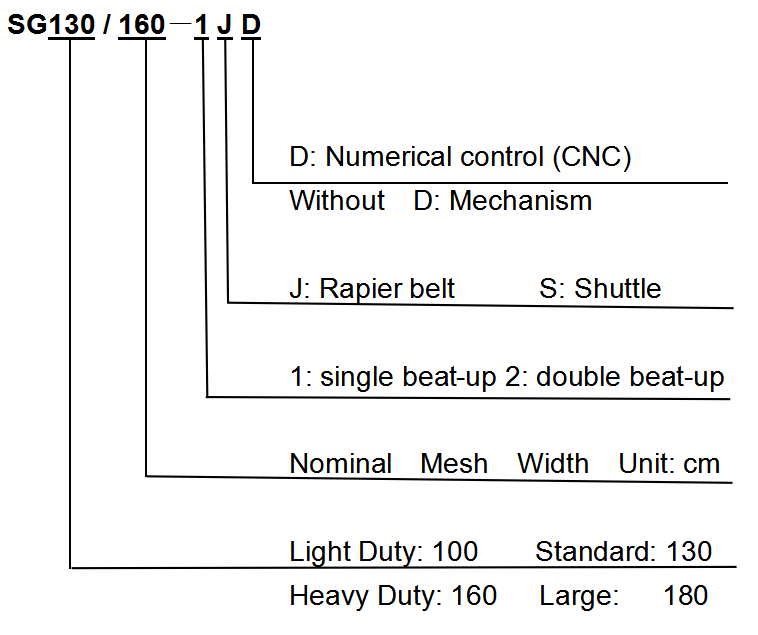

SG100 series wire mesh machine mainly suitable for wire diameter from 0.03mm to 0.3mm, plain weave square hole 40-400

mesh/inch.

SG130 series wire mesh machine is suitable for wire diameter from 0.06mm to 0.45mm,plain weave square hole 20-260

mesh/inch.

SG160 series wire mesh machine is suitable for wire diameter from 0.1mm to 0.7mm, plain weave square hole 10-100

mesh/inch.

SG180 series wire mesh machine is suitable for wire diameter 0.2mm-1.0mm or 1.0-2.1mm, plain weave square hole 6-60 or 2

-40 mesh/inh.

Duble beat-up is mainly used for paper and pulp wire mesh weaving, security wire mesh weaving which requires the surface

is abosolutely fat and hole size is absolutely accuracy.

Currenlt our wire weaving machines are shuttleless rapier type, but we manufacture shuttle type weaving machines too.

If you do not know which model is suitable for you, please inform us the wire mesh specifications you want to weave

including: wire diameter, mesh count per inch, weaving width, wire material, weave patterns,application,etc. Our sales

person will contact you shortly with workable solutions for you.
