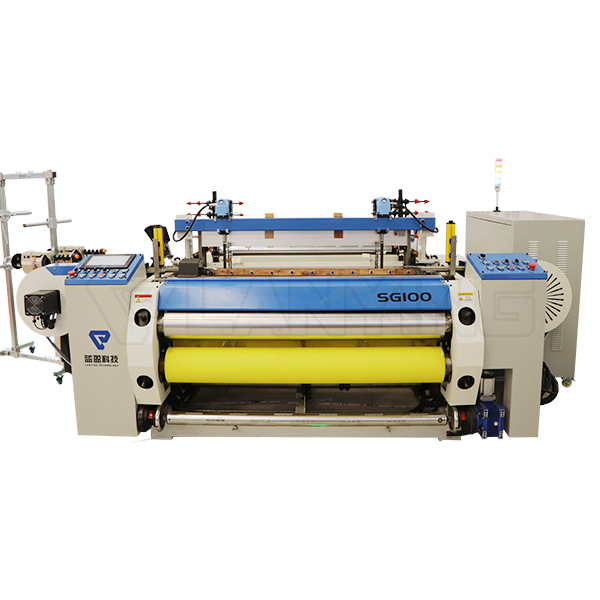

SG100L/130-1JD Light-duty metal wire mesh weaving machine

SG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving. It adopts large touch screen HMI, the operation is simple; specially designed precision let-off and precision tension control algorithm can display the tension in real time and automatically adjust the mesh surface tension; CNC 3-roller take-up structure can realize non-stop mesh removal at any length. The user can choose different shedding mechanism,L cam arch heald frames mechanism, electronic rotary dobby, servo dobby shedding mechanism. The weaving precision is high and noise is small, easy to operate and maintenance. According to the accuracy, it is divided into SG100L light-duty series and SG100P precision series.



S100L series mainly suitable for fine mesh weaving.

Main Technical Parameters:

Model no.: SG100L/130-1JD

Wire diameter: 0.016-0.3mm

Nominal weaving width: 1300mm (arbitrarily adjust width, special width on request)

Weaving density: plain weave square hole 40-600mesh/inch; twilled weave up to 60mesh/inch

Speed: 80-120RPM, the spindle frequency converter regulates speed, and the actual speed depends on the weaving width and specifications.

Shedding forms: 3 options: cam lead arch heald frames, electronic rotary dobby, servo dobby. Aluminium heald frames, if choose electronic rotary dobby, max 20pcs heald frames.

Weft insertion: High performance servo motor CNC single-way or two-way weft insertion, full carbon fiber rapier.

Beat-up form: single

Let-off/Take-up: CNC let-off(warp tension automatic display and adjust), CNC take-up (3-roller)

Wire material: Metal wires such as stainless steel, iron, bronze, copper, phosphate bronze, aluminum, platinum, polyester, plastic, etc , and non-ferrous wires.

Weaving method: plain, twilled, dutch, 3-heddle, 5-heddle, RDW, stain, weft density change,etc..according to request.

Basic tension: 15000N/M

Size(L*W*H)mm: 2750X3300X1500

Weight: 4200KG

SG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving.
